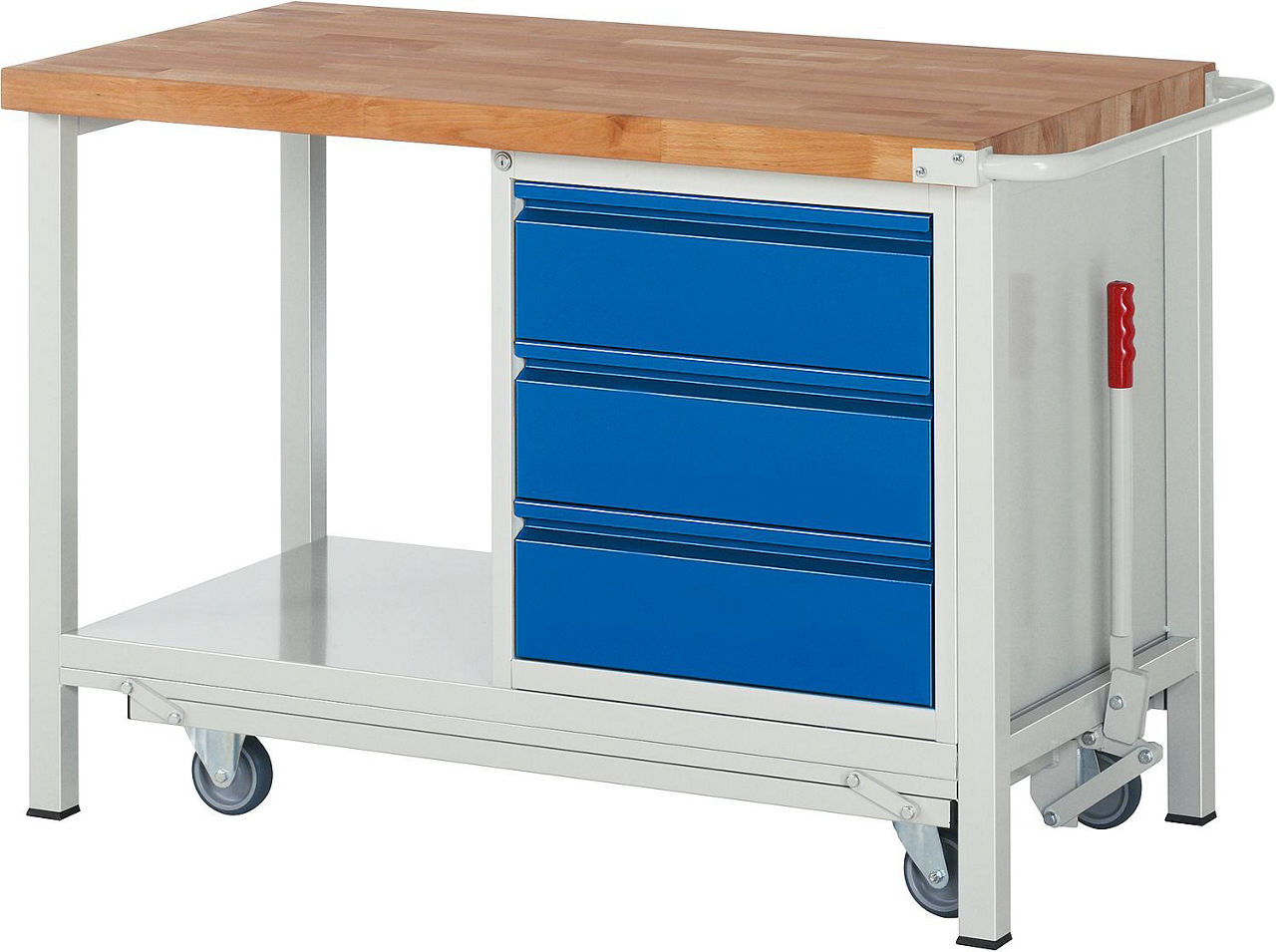

Workbenches 8157 Series BASIC-8 with chassis that can be lowered BASIC-8, with 3 drawers with solid beech worktop, 40 mm

Delivery item
Short description
  • - Dimensions (H x D) (mm): 880 x 700, see table for width
    - Solid beech worktop (H) (mm): 40
    - 4-leg welded frame with two pairs of frame legs made of profile steel tube (L x W x S) (mm): 45 x 45 x 2
    - C-profile cross struts (L x W x S) (mm): 40 x 40 x 2
    - High-quality powder coating Frame/housing light grey (RAL7035), drawers gentian blue (RAL5010)
    - 2 x fixed and 2 x swivel castors with brakes
    - Bow/push handle (supplied loose)
    - Substructure container dimensions (W x H x D) (mm): 580 x 620 x 650
    - Drawers on roller bearings with self-closing mechanism, anti-return mechanism, pull-out 90%
    - Fully integrated, continuous handle strips
    - Central locking (pin cylinder lock with 2 keys)
    - Chassis can be extended and retracted via eccentric lever
    - Load capacity when operating the eccentric lever (kg): 300
    - Surface load on castors (kg): 450
    - Surface load with retracted chassis (kg): 1250
    Classification:
    - Bottom right:
    - 3 x drawers, internal dimensions (W x H x D) (mm): 490 x 180 x 560
    - Load capacity (kg): 100
    - Supplied fully assembled, without tools, boxes, system structure, perforated plate or other accessories
  • S = material thickness
  • Suitable accessories: order no.: 81 027 42 - 50

More Details

Variant Selection

Order Number: Please select a variant


Breite [mm]

SKU

Availability

Price

Quantity

81 028 19
1250
81 028 19

not logged in

81 028 20
1500
81 028 20

not logged in

81 028 21
2000
81 028 21

not logged in
