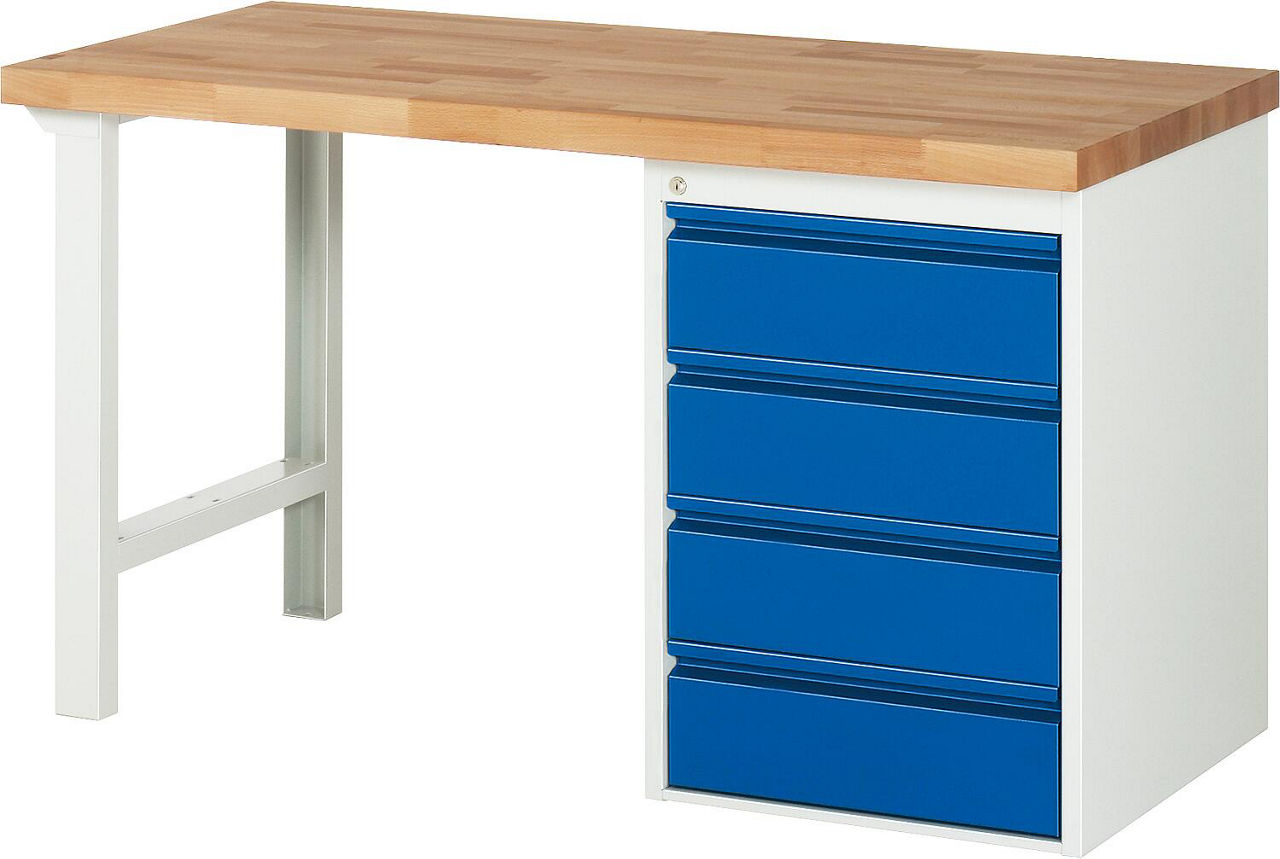

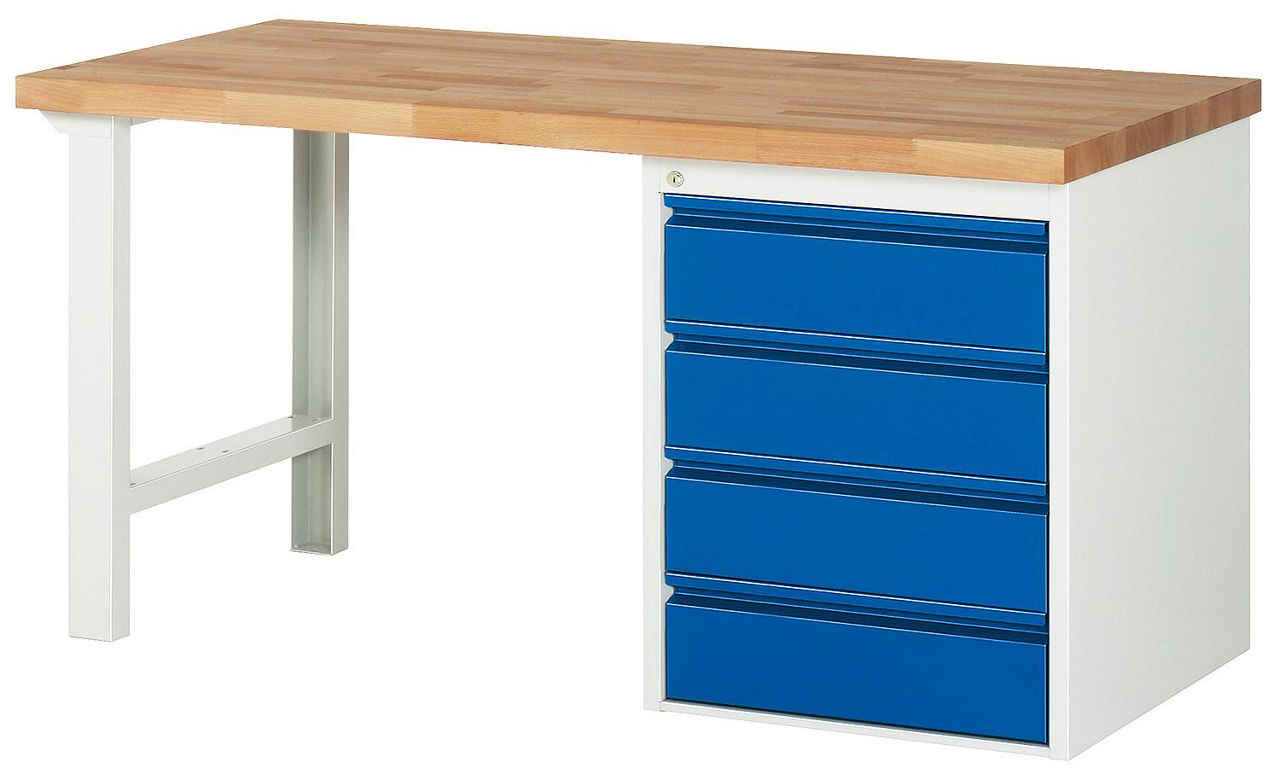

BASIC-7 series workbench with 4 drawers with solid beech worktop, 40 mm

Short description

- Dimensions (H x D) (mm): 840 x 700, see table for width
- Solid beech worktop (H) (mm): 40
- 2-leg welded frame with one pair of frame legs
- Welded frame legs made of C-profile steel (L x W x S) (mm): 70 x 50 x 2
- Frame legs at the bottom with floor anchoring option, at the top with support surface (L x W x S) (mm): 120 x 120 x 5
- High-quality powder coating Frame/housing light grey (RAL7035), drawers gentian blue (RAL5010)
- Substructure container right, dimensions (W x H x D) (mm): 580 x 800 x 650
- Drawer on roller bearings with self-closing mechanism, anti-return mechanism and pull-out 90%
- Fully integrated, continuous handle strip
- Central locking (pin cylinder lock with 2 keys)
- Max. surface load (kg): 1000
Classification:
- Bottom right:
- 4 x drawers, internal dimensions (W x H x D) (mm): 490 x 180 x 560
- Load capacity (kg): 100
- Supplied fully assembled, without tools, boxes, system structure or other accessories
S = material thickness
Suitable accessories: order no.: 81 027 42 - 50
