WOLF
24 034 47
Maintenance kit Wolf 8614984
Immediately available
- Suitable for Wolf: CGS-2 20/24, CGB-2-14, CGB2-20, CSZ-2, CGB-2K-20, CGB-2-24, CGB-2K-24 from 01.2016 and after conversion to new combustion chamber cover
- Ref. no.: 8614984
- Scope of delivery:
- Maintenance instructions
- Seal sets Burning chambers
- Burner tube seal
- Set Lip seal gas
- Ignition electrode
- Ionisation electrodes
- Seal sets hot water heat exchanger
- Silicone grease
47 000 01
Heating water heat exchanger Wolf 86 03 043
Immediately available
- Suitable for Wolf: CGB/CGS/CGW 11-24
- Ref. no.: 8603043
- Scope of delivery:
- Cleaning brushes
- Seal sets
Multiple variants

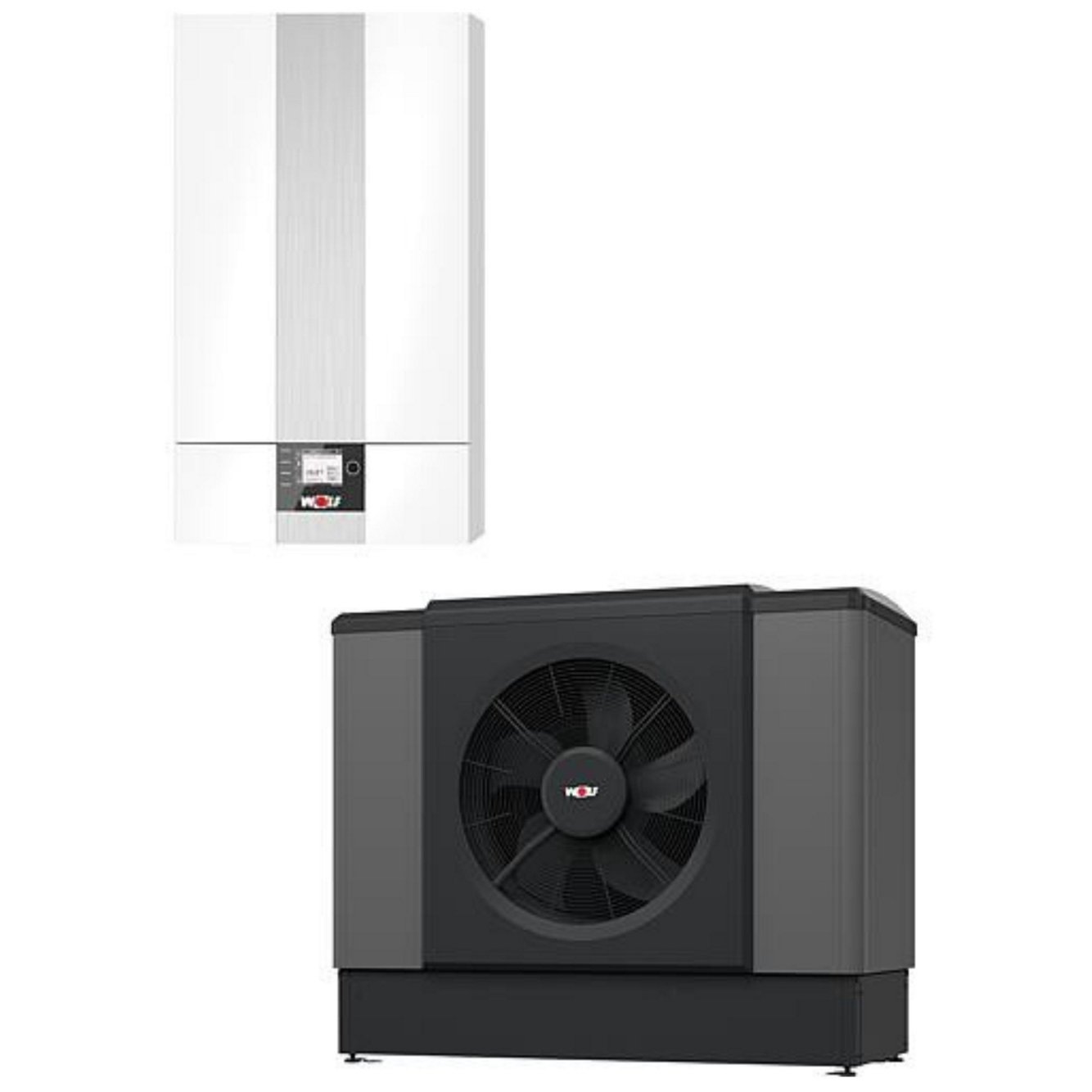

Wärmepumpe CHA-Monoblock
Immediately available
- Compact basic device for individual use
- Heating and cooling operation
- 9 kW electric heating element
Multiple variants
Maintenance sets COB/CS for Wolf
Immediately available
- Suitable for Wolf: COB/CS
- Scope of delivery:
- Ignition electrodes
- Oil burner nozzles
- Oil filter inserts
- O-ring 320 x 8
- Silicone grease
Multiple variants

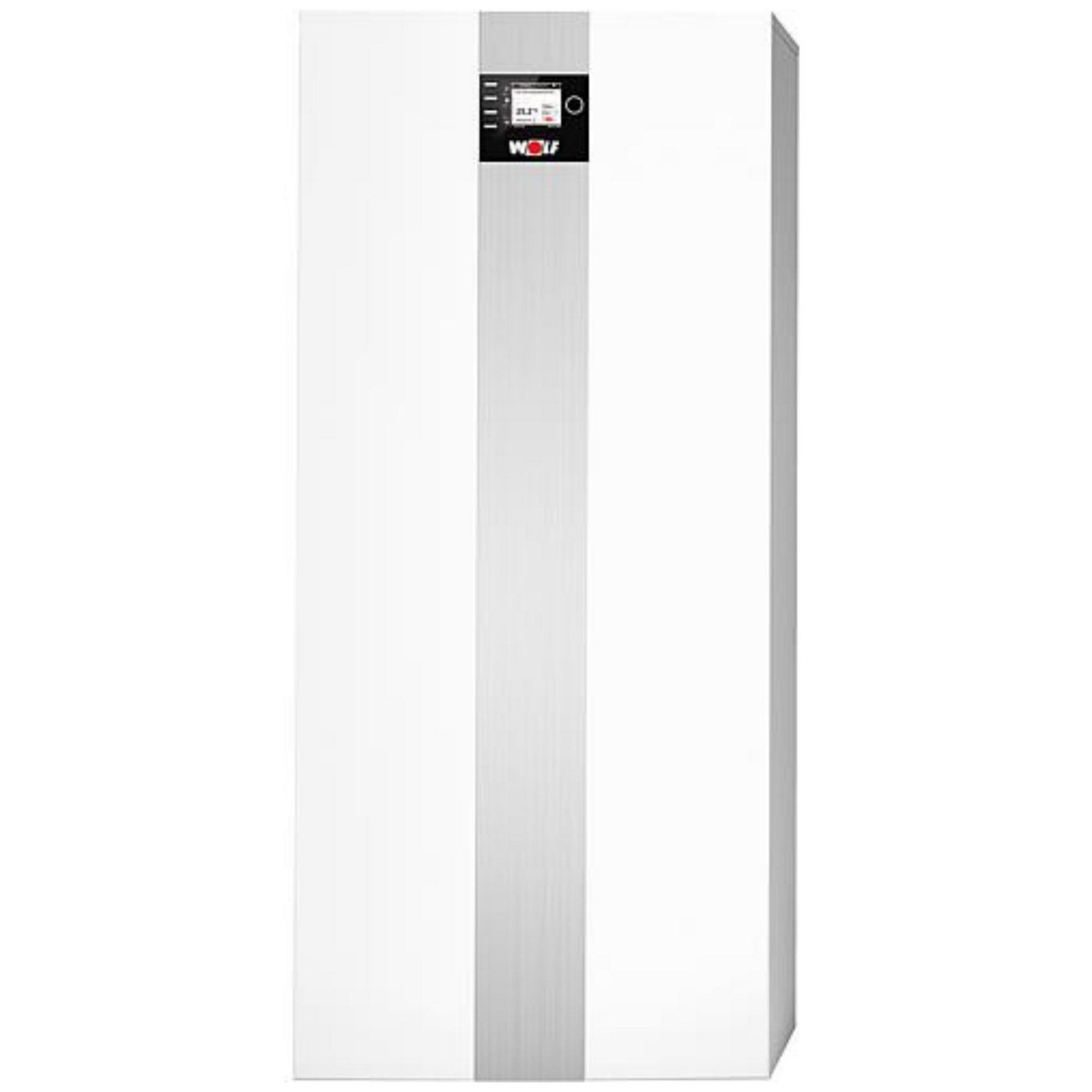

Oil condensing boiler COB-2 B30
Immediately available
- Floor-standing oil condensing boiler (2-stage)
- Addition of up to 30 % bio-oil possible
- Ambient-air-dependent and ambient-air-independent operation
- Combustion principle: pressurised atomisation
- Technology without oil preheating: Extremely low power consumption
- Intelligently controlled by Wolf control system WRS-2
- Including additional differential pressure sensor
- Standardised efficiency up to 105 % (Hi)
- Optionally expandable with CWL-T-300 domestic ventilation unit and adjacent TS-160 / TR-160 storage tanks (COB-2-15/20/29)
- Robust aluminium-silicon heat exchanger
- Proven ceramic flame tube
- Neutralisation and lifting pump can be integrated to save space
- Can be operated with standard and low-sulphur EL heating oil and bio heating oil (B30)
- Cascadable: Up to 200 kW
- Hybrid+: COB-2-15/20 can be intelligently combined with WOLF heat pumps
- BM-2 control module not included in the scope of delivery
- Addition of up to 30 % bio-oil possible
- Ambient-air-dependent and ambient-air-independent operation
- Combustion principle: pressurised atomisation
- Technology without oil preheating: Extremely low power consumption
- Intelligently controlled by Wolf control system WRS-2
- Including additional differential pressure sensor
- Standardised efficiency up to 105 % (Hi)
- Optionally expandable with CWL-T-300 domestic ventilation unit and adjacent TS-160 / TR-160 storage tanks (COB-2-15/20/29)
- Robust aluminium-silicon heat exchanger
- Proven ceramic flame tube
- Neutralisation and lifting pump can be integrated to save space
- Can be operated with standard and low-sulphur EL heating oil and bio heating oil (B30)
- Cascadable: Up to 200 kW
- Hybrid+: COB-2-15/20 can be intelligently combined with WOLF heat pumps
- BM-2 control module not included in the scope of delivery
| Type | COB-2 B30 | 15 | 20 | 29 | 40 |
| EEK space heating | A+++ to D | A | A | A | A |
| Nominal heat output at 80/60°C min./max. | [kW] | 9.2 - 14.7 | 13.4 - 19.5 | 18.9 - 28.8 | 27.4 - 38.5 |
| Nominal heat output at 50/30°C min./max. | [kW] | 9.6 - 15.4 | 14.1 - 20.4 | 19.9 - 30.4 | 28.7 - 40.4 |
| ø air/flue pipe connection | [mm] | 80 / 125 | 80 / 125 | 80 / 125 | 110 / 160 |
| Dimensions (H x W x D) | [mm] | 1290 x 566 x 605 | 1290 x 566 x 605 | 1290 x 566 x 605 | 1490 x 566 x 605 |
| Weight | [kg] | 92 | 92 | 99 | 122 |
| Ref. no. | 8909298 | 8909299 | 8909300 | 8909301 |
Multiple variants

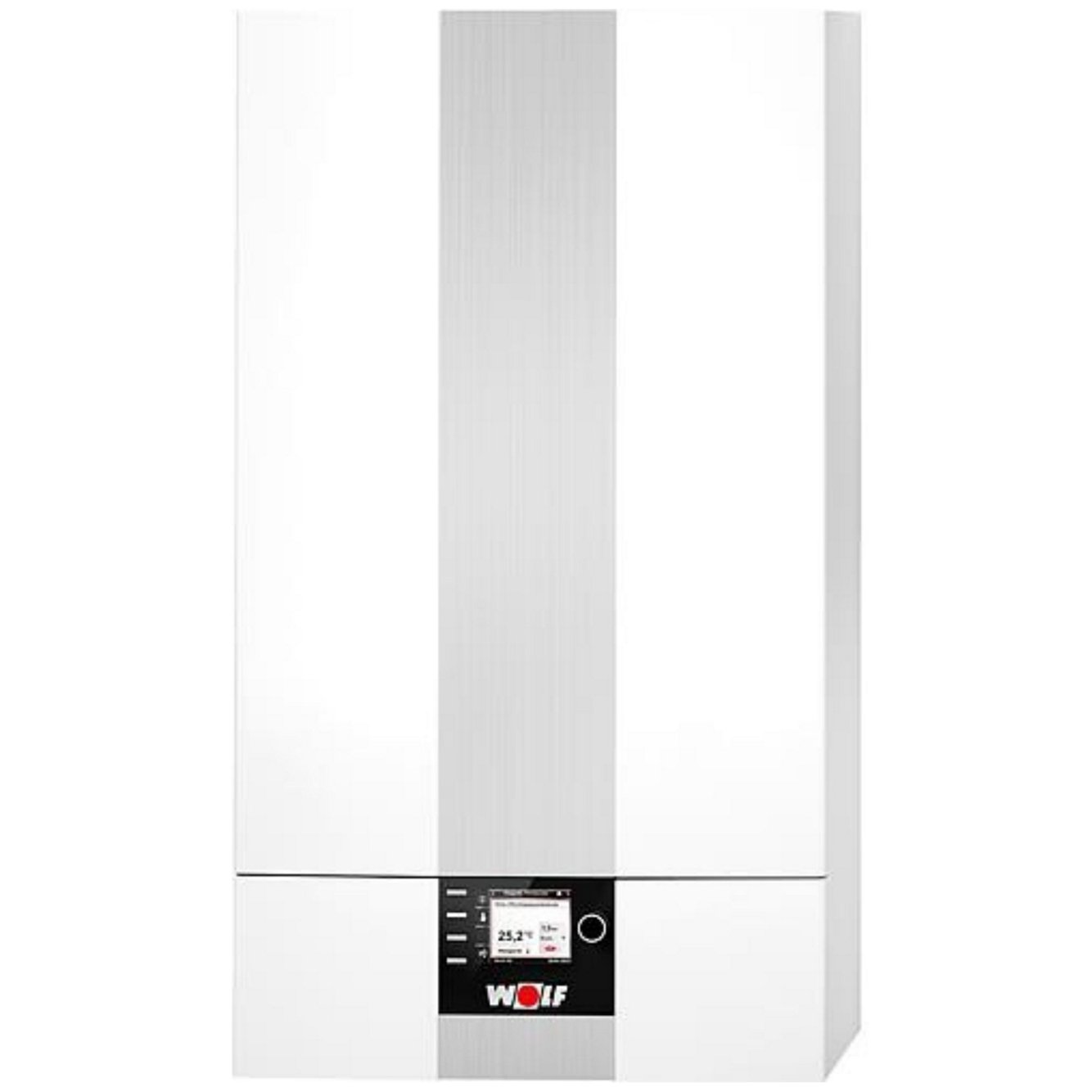

Gasbrennwertgerät CGB-2
Immediately available
- Gas condensing boiler purely as heater or for hot water preparation via an external hot water tank
- Wall-mounted
- Compact basic device for individual use
24 004 43
Heating water heat exchanger Wolf 8614087
Immediately available
- Suitable for Wolf: CGB-2/CGS-2/CGW-2
- Ref. no.: 8614087
- Scope of delivery:
- Seal sets
- Cleaning brushes
14 008 16
Warm water heat pump Wolf, FHS-280 HE (R 134A), 2486464
Immediately available
- For bivalent operation. With a coil heat exchanger for connecting an additional heat generator
- Recirculation and supply/exhaust air mode possible
- Ready to plug in with earthed plug, 1.8 m cable length
24 004 45
Heating water heat exchanger D 300 Wolf 8611170
Immediately available
- Suitable for Wolf: CGB 35/-50, CGB-K40-35
- Type: D 300 AluPro+
- Ref. no.: 8611170
Multiple variants
FHS-S hot water heat pump
Immediately available
- No heat exchanger for monovalent operation
- Recirculation and supply/exhaust air mode possible
- Ready to plug in with earthed plug, 1.8 m cable length
24 001 49
Maintenance kit Wolf 8611173
Immediately available
- Suitable for Wolf: CGB-35/50 and CGB-K40-35
- Ref. no.: 8611173
- Scope of delivery:
- Ignition electrode
- Ionisation electrodes
- Seal sets/Screws
- Ignition cable
- PH measuring strip
- 2 tubes of silicone grease
- Maintenance instructions
24 029 94
Maintenance kit Wolf 2745709 replaces 8603017
Immediately available
- Suitable for Wolf: CGB/CGS/CGW 11-24
- Ref. no.: 2745709 replaces 8603017
- Scope of delivery:
- Ignition electrode
- Ionisation electrodes
- Ignition cable
- Seal sets
- Maintenance instructions
- Silicone grease
Multiple variants

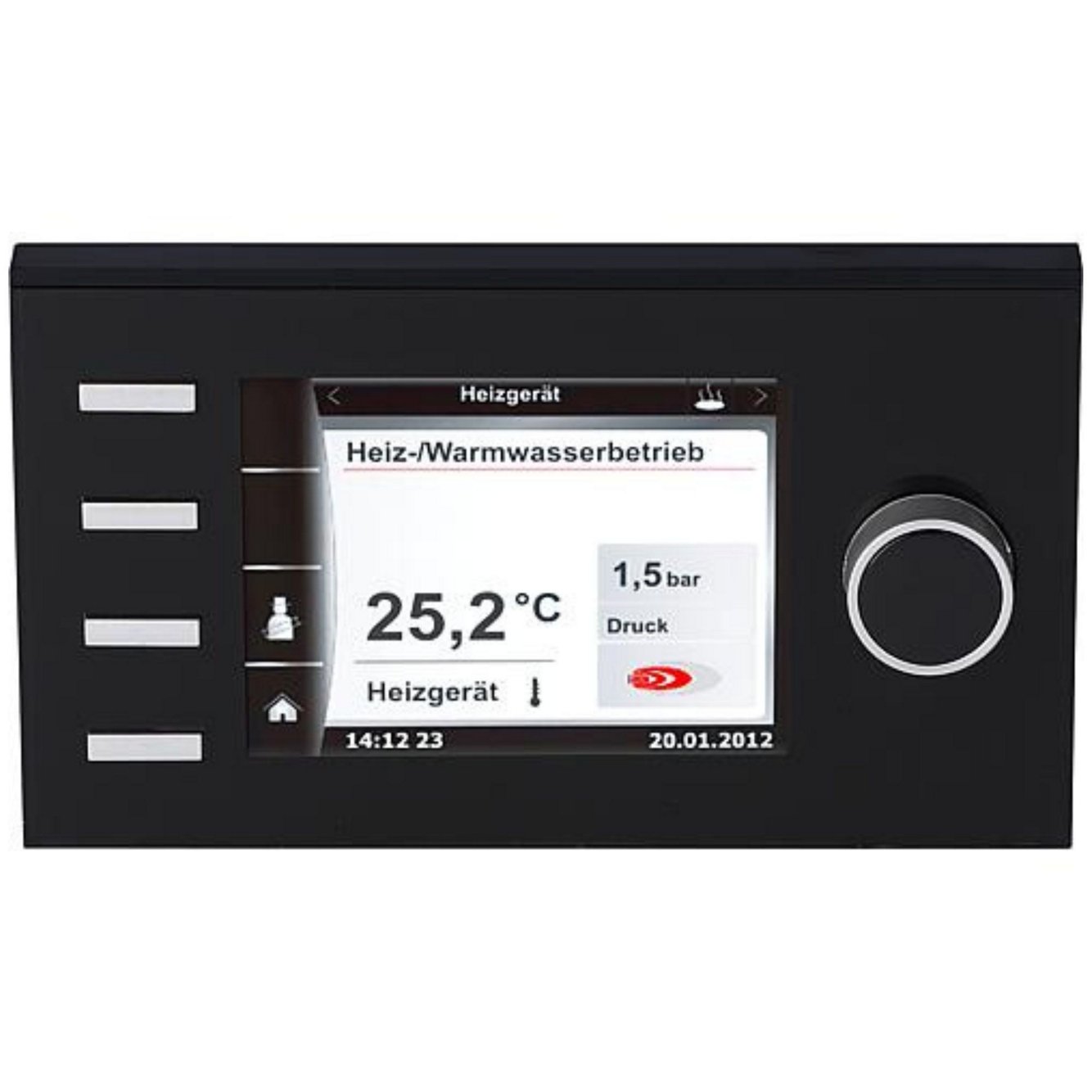

Bedienmodul BM-2
Immediately available
- Central operating module for WOLF heat generators of WRS-2 generation
- Room/weather-based temperature controller
- For installation in heat generator/additional modules or in wall base for remote control
14 004 05
Wolf CGU-2-10 8616111 gas calorific value boiler
Currently not in stock
- Gas boiler as a pure heating appliance, without hot water preparation
- Wall-mounted
- Gas heater for renovations (in accordance with the Ecodesign Directive)
24 030 50
Flue gas temperature monitor Wolf 8603058
Only a few items left in stock
- Suitable for Wolf: CGB-35/50/75/100, CGB-K-40-35, CGW 11-20, MGK 130-300
- Switching point: 85 °C
- Ref. no.: 8603058 replaces 2741063
20 000 31
Burning chambers D118 Wolf 173102299
Immediately available
- Suitable for Wolf: CGB-11, CGB-20, CGB-K-20, CGB-24, CGB-K-24 from constr. yr. 04/03, CGS-20/160 from constr. yr. 04/03, CGS-24/200 from constr. yr. 02/06, CGW-11/100 from 08/09, CGW-20/120 from 06/04, CGW-24/140 from 02/06 CGB-2-14, CGB-2-20, CGB-2K-20, CGB-2-24, CGB-2K-24 from construction year 09/13 to 12/15, CGS-2-14/120L , CGS-2-20/160L, CGS-2-24/200L from construction year 09/13 to 12/15, CGS-2-14/120L , CGS-2-20/160L, CGS-2-24/200L from construction year January 2016, CGW-2-14/100L, CGW-2-20/120L, CGW-2-24/140L from construction year 09/13 to 12/15, CGW-2-14/100L, CGW-2-20/120L, CGW-2-24/140L from construction year January 2016
- Dimensions: ø 118 mm x 162 mm length
- Ref. no.: 173102299 replaces 265180799, 26 51 807, 260009199, 26 00091, 86 14 089 and 17 31 022
Multiple variants
Gasbrennwertgerät CGB-2K
Only a few items left in stock
- Gas condensing boiler combination heater for hot water preparation via stainless steel plate heat exchanger
- Wall-mounted
- Compact basic device for individual use
47 000 06
Wolf fan 213871099
Currently not in stock - Time of delivery: approx. 3-5 weeks
- Suitable for Wolf: COB-29 from 05/08, TOB-18
- Type: HRG134/0900-3612
- Power: 110 W
24 001 54
Maintenance kit Wolf 8612865
Immediately available
- Suitable for Wolf: CGB 75-100KW
- Ref. no.: 8612865
- Scope of delivery:
- Ignition electrode
- Ionisation electrodes
- Seal sets/Screws
- Ignition cable
- PH measuring strip
- 2 tubes of silicone grease
- Maintenance instructions
14 000 05

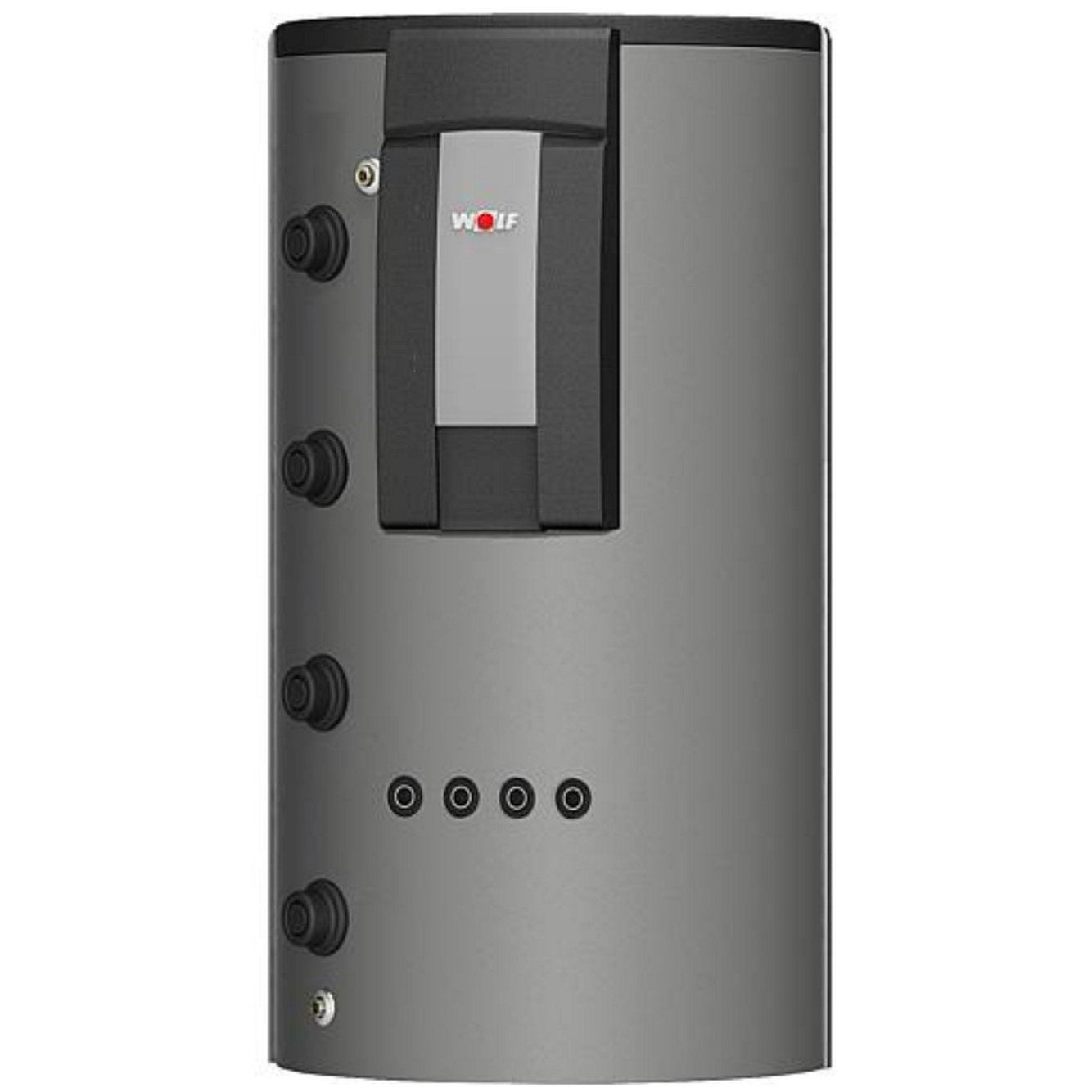

Drinking water storage tank Wolf CSW 120 2445121
Only a few items left in stock
- With a heat exchanger
- Enamelled steel
- Magnesium protective anode
24 030 29
Displacement body Wolf 8611172
Immediately available
- Suitable for Wolf: TGB-40, TGB-60, CGB-K-40-35 from constr. yr. 04/06, CGB-35/50 from constr. yr. 05/05
- ø: 226 mm
- Length: 170 mm
24 034 87
Fan, Wolf 213795099
Immediately available
- Suitable for Wolf: CGB-2-14, CGB-2-20, CGB-2K-20, CGB-2-24, CGB-2K-24 from year 09/13, CGS-2-14/120L, CGS-2-20/160L, CGS-2-24/200L from year 09/13, CGW-2-14/100L, CGW-2-20/120L, CGW-2-24/140L from year 09/13
- Type: NRG118/0800
- Power: 70 W
Multiple variants
Exhaust gas set for shaft installation, plastic
Immediately available
- For room-sealed operation (C93x)
- With concentric connection cables and rigid flue gas pipe in the shaft
- Operating temperature max.: 120°C
47 500 38
In flow sensor 86 01 885
Immediately available
- Suitable for Wolf: Flow sensor: GG-2/GU-2/BWL-1/BWS-1/ CGB-2, as a return sensor: BWL-1/BWS-1/CGB-2 layered charge sensor CS
- Ref. no.: 274105499 replaces 2741054 and 8601885
